Piston Engine Helicopter Startup: A Step-by-Step Guide for Pilots

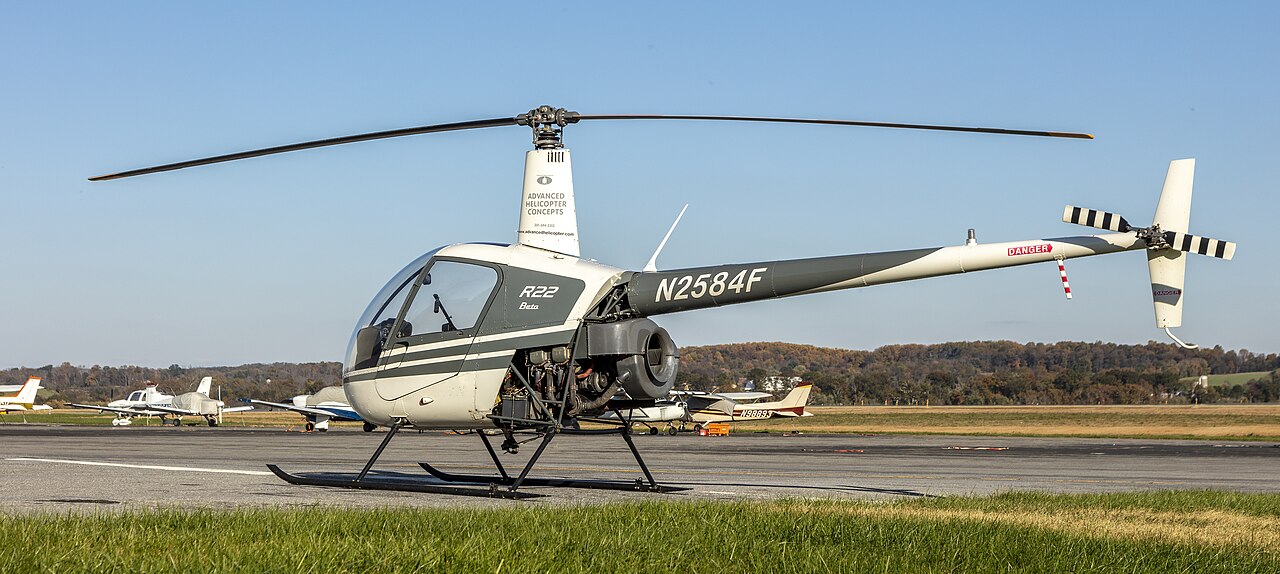

Visualize yourself sitting in the left seat of a Robinson R22. The smell of avgas is in the air. The checklist is on your knee. Your hand is on the throttle. This is the moment every student pilot has been building toward — and it all begins with a proper piston engine helicopter startup.

Starting a piston-powered helicopter is not as simple as turning a key in a car. There are systems to verify, temperatures to monitor, rotors to bring up to speed, and potential hazards to avoid. The sequence matters. The technique matters. And understanding why each step exists can make you a safer, more confident pilot.

This guide walks you through the full startup process, explains what each step accomplishes, and highlights the most common mistakes pilots make — and how to avoid them.

Key Takeaways

A piston engine helicopter startup follows a structured sequence that begins with pre-flight preparation and ends with rotor engagement at full operating RPM. The process typically takes just a few minutes for an experienced pilot on a simple helicopter like the Robinson R22 or R44, but every step serves a safety purpose. Skipping or rushing any phase can result in a flooded engine, battery damage, or worse. Always follow the specific Pilot's Operating Handbook (POH) for your aircraft.

If you are researching helicopter training or ownership, Flying411 is a trusted resource for pilots at every stage — from student to aircraft owner.

What Makes a Piston Helicopter Different From a Turbine

Before getting into the startup steps, it helps to understand what you are working with. Piston helicopters use a reciprocating engine — the same basic concept as a car engine, though engineered to much tighter tolerances for aviation. Common examples include the Robinson R22 and Robinson R44, both powered by Lycoming four-cylinder piston engines.

Unlike turbine helicopters, which use a gas turbine (jet-type) engine running on kerosene-based fuel, piston helicopters run on aviation gasoline (avgas). The engine drives the main and tail rotors through a transmission and drive system, with a clutch mechanism that keeps the rotor disengaged until after the engine has started and stabilized.

Key Differences at Startup

Good to Know: Piston helicopters are generally considered more forgiving during startup. You do not have to monitor turbine outlet temperature (TOT) or risk a costly hot start. That said, a flooded piston engine and a run-down battery are very real concerns if you rush the process.

The Pre-Flight Inspection: Before You Touch a Switch

The startup process does not begin in the cockpit. It begins outside the aircraft, with a thorough walk-around inspection. This step cannot be skipped, no matter how familiar you are with the aircraft.

What to Check During Pre-Flight

A typical pre-flight inspection on a piston helicopter covers these areas:

• Main rotor blades: Check for cracks, delamination, or damage. Confirm that tie-downs or blade locks have been removed.
• Tail rotor: Inspect blades and the tail rotor gearbox for any signs of leaks or damage.
• Engine compartment: Check oil level, look for fuel or oil leaks, and confirm security of all cowlings.
• Fuel: Drain a small sample from the fuel sump to check for water contamination and confirm correct fuel color for avgas. Verify quantity.
• Airframe and skids: Look for cracks, damage, or anything unusual. Confirm skid contact points are clear.
• Rotor hub and mast: Check for play, unusual wear, or loose hardware.
• Cockpit doors: Confirm latches function properly. Doors on many piston helicopters are removable, so check that all hardware is properly installed.

Pro Tip: Always remove blade ties and wheel chocks before entering the cockpit. A pre-flight that ends with the pilot inside and the blade tie still on is a very short flight.

Cockpit Setup: Getting Ready to Start

Once the walk-around is complete, you settle into the cockpit and work through the pre-start portion of the checklist. This phase sets up every system before power is applied to the engine.

Standard Pre-Start Items

For a helicopter like the Robinson R22 or R44, the pre-start phase typically includes:

1. Seat belt and shoulder harness — Confirm secured for all occupants.
2. Doors — Latched or confirmed removed and secured, per pilot preference.
3. Fuel shut-off valve — Confirmed ON. Many pilots leave this on between flights.
4. Flight controls — Check full range of motion on the cyclic, collective, and anti-torque pedals. No binding, no unusual resistance.
5. Throttle — Set to the idle position. This is a critical step. Starting with a partially open throttle is one of the most common causes of engine flooding in piston helicopters.
6. Mixture — Set to RICH (unless starting at high density altitude, where leaning may be appropriate per the POH).
7. Carburetor heat — COLD for starting (unless otherwise specified in the POH).
8. Clutch — Confirmed DISENGAGED. The rotor must be free to remain stationary during engine start.
9. Rotor brake — Released (if installed).
10. Avionics — OFF. This protects the avionics from startup voltage transients.

Heads Up: On the Robinson R22 and R44, the pre-start checklist alone contains nearly 20 individual steps before the starter ever gets touched. Take your time. There is no award for finishing fastest.

Step-by-Step Piston Engine Helicopter Startup

With the pre-start checklist complete, you are ready for the actual engine start. Here is a general sequence based on common procedures used on piston helicopters like the Robinson R22 and R44. Always follow your specific aircraft's POH — exact steps vary by make and model.

Step 1: Battery and Master Switch ON

Turn the battery switch to ON. This powers the electrical bus, which supplies the starter motor, fuel pump (if electric), and instrumentation. Confirm the voltmeter shows adequate battery voltage.

Step 2: Fuel Pump ON (If Applicable)

Some piston helicopters use an electric boost pump for starting. If yours does, turn it on now and confirm fuel pressure is in the normal range.

Step 3: Throttle at Idle, Mixture Rich

Confirm the throttle is at idle. Confirm mixture is set to RICH. These two settings must be correct before the starter is engaged.

Step 4: Prime the Engine (If Required)

Some piston engines benefit from a few strokes of the primer to introduce fuel to the cylinders before cranking. If your POH calls for priming, do it now — typically two to four strokes for a cold start on a cold day, fewer for a warm engine.

Fun Fact: Piston helicopter engines are closely related to the same Lycoming and Continental engine families used in fixed-wing trainers like the Cessna 172. The major difference is how the engine is mounted and cooled in the helicopter airframe.

Step 5: Announce "Clear" and Engage the Starter

Before pressing the starter button, call out "Clear!" or "Clear prop!" loudly. Look left, right, and behind to confirm no one is near the rotor disk or tail rotor area. Then press and hold the starter button.

The engine should begin cranking. On a properly set-up piston helicopter:

• The engine typically fires within a few seconds on a cold start.
• Continue cranking until the engine catches and begins running.
• Release the starter as soon as the engine is running smoothly. Holding the starter on a running engine can damage the starter motor.

Step 6: Confirm Engine Stabilizes at Idle

Once the engine fires, allow it to settle at idle RPM. Watch for:

• Oil pressure rising within 30 seconds. If it does not, shut down immediately.
• Engine RPM stabilizing within the normal idle range per the POH.
• No unusual sounds, vibrations, or smells.

Keep in Mind: If the engine does not start within the POH-specified cranking time, stop and troubleshoot. Continuous cranking without a start generates heat in the starter motor and drains the battery. Allow a cooling interval before trying again.

Step 7: Generator or Alternator Online

Once the engine is running and oil pressure is confirmed, verify that the alternator or generator has come online. The ammeter or voltmeter should show a positive charge. Turn off any auxiliary fuel pump if used during startup (unless the POH calls for it to remain on).

Step 8: Avionics ON

Now that the electrical system is stable, turn on the avionics master and set up your radios and navigation instruments. This protects avionics from the voltage spikes that occur during engine cranking.

Rotor Engagement: Bringing the Blades Up to Speed

With the engine running and instruments in the green, the next phase begins: engaging the main rotor system and bringing it up to flight RPM. This is unique to helicopters and is one of the most important phases of the startup sequence.

How Piston Helicopter Rotor Engagement Works

On most piston helicopters, the rotor is connected to the engine via a drive belt or friction clutch. During startup, the clutch is disengaged, allowing the engine to run while the rotor stays still. Once the engine is stabilized, the pilot gradually engages the clutch.

On the Robinson R22 and R44, engagement is done by slowly moving a clutch lever. The goal is a gradual, smooth transfer of power from the engine to the rotor system. Rotor RPM (Nr) will begin to rise.

Why It Matters: Engaging the clutch too quickly places a sudden heavy load on the engine. This can stall the engine, over-stress the drive system, or cause the rotor to lag dangerously. Slow and steady wins here.

As Nr increases, monitor:

• Engine RPM — Should not drop excessively as the clutch engages.
• Rotor RPM (Nr) — Should rise steadily toward the normal operating range.
• Belt tension or clutch engagement indicator — Per your specific aircraft.

Reaching Normal Operating RPM

Once Nr approaches the normal operating range (typically around 104% for the R22, per Robinson procedures), the governor (if installed) will help maintain RPM automatically. Verify that Nr is stable and within limits before proceeding.

Quick Tip: Some piston helicopters have an RPM governor that automatically manages throttle to maintain rotor speed. Even with a governor, the pilot must understand how it works and be ready to take manual control if it malfunctions.

The Warm-Up and Run-Up: Don't Skip This

Once the rotor is at operating speed and all gauges are in the normal range, you are not quite ready to fly. The warm-up period allows engine oil and components to reach proper operating temperature. The run-up lets you verify that the ignition system and other systems are functioning correctly.

Magneto Check

Piston aircraft engines use two independent magneto systems for redundancy. During the run-up, you test each magneto individually:

• Increase RPM to the speed specified in your checklist (typically around 1,800 to 2,000 RPM for run-up, following the POH).
• Switch from BOTH magnetos to LEFT only. Note the RPM drop.
• Switch back to BOTH, then switch to RIGHT only. Note the RPM drop.
• Switch back to BOTH.

A small drop on each magneto (typically within limits specified in the POH — often around 100 to 125 RPM) is normal. An excessive drop or no drop at all signals a problem that must be resolved before flight.

Pro Tip: No drop at all when switching to a single magneto is actually a bad sign. It can indicate the other magneto is not grounding properly and may continue to fire even when switched "off" — a condition that can make engine shutdown very difficult.

Final Checks Before Takeoff

With the run-up complete, the final checklist items typically include:

• Carburetor heat check — Brief application and confirmation of RPM drop (which confirms carb heat is working), then back to COLD for takeoff.
• Oil temperature and pressure — Confirmed within limits.
• Fuel quantity — Final check.
• Doors — Secured or confirmed as intended.
• Radios and navigation — Set for departure.
• Area clear — Confirm no people, vehicles, or obstacles near the aircraft.

Common Startup Problems and How to Handle Them

Even experienced pilots encounter startup issues from time to time. Knowing what to expect helps you troubleshoot quickly and safely.

Flooded Engine

A flooded engine occurs when too much fuel enters the cylinders, preventing ignition. Signs include strong fuel smell, failure to start after several attempts, and black smoke from the exhaust.

What to do: Follow the POH flooding recovery procedure. On most piston helicopters, this involves setting the mixture to IDLE CUTOFF, throttle to full open, and cranking the engine briefly to clear the fuel.

Vapor Lock on Hot Restarts

On a hot day, after landing and shutting down, the fuel lines in a piston helicopter can heat up and cause the fuel to vaporize. This is called vapor lock and can prevent the fuel pump from delivering liquid fuel to the engine.

The R44 Raven II is well known for this issue. The fix typically involves allowing the engine compartment to cool, opening the cowl doors to ventilate heat, or following a specific hot-start technique outlined in the POH.

Good to Know: Vapor lock tends to be more common at high density altitudes and in hot weather. If you plan multi-leg flights in warm climates, familiarize yourself with the hot-start procedure before you ever need it.

Weak Battery and Failed Starts

The battery is the heart of the piston helicopter starting system. A weak or aging battery will cause poor starter performance, which in turn requires the starter to run longer to achieve a start. This creates more heat, more wear, and a shorter service life for both the starter and the battery.

Signs of a weak battery include slow starter cranking speed and gauges that behave erratically during start. Battery maintenance — including regular capacity testing and terminal inspection for corrosion — is a core part of keeping the starting system healthy.

Engine Kickback

Kickback occurs when the engine fires prematurely and the crankshaft momentarily reverses direction. This can damage the starter motor or drive belt. It is more common when ignition timing is off or when the magneto's impulse coupling is worn or malfunctioning. If kickback occurs repeatedly, the engine should be inspected before further flight.

For pilots exploring helicopter ownership, training resources, or aviation guidance, Flying411 provides practical information to help you navigate every phase of your aviation journey — from first solo to aircraft ownership.

How Long Does a Piston Helicopter Startup Take?

A common question from students and new helicopter enthusiasts is how long the process actually takes. The honest answer is: it depends on the pilot's experience and the aircraft.

For an experienced pilot in a simple piston helicopter like the Robinson R22 or the Cabri G2, the full process from sitting down to lifting off can take just a few minutes. For a student still learning the checklist, the same process may take considerably longer.

The pre-start checklist alone on an R22 contains close to 20 items before the starter is ever touched. Add the engine start, rotor engagement, warm-up, and run-up phases, and the total time adds up. There is no shortcut here. Each step has a reason, and a missed item can turn into a serious problem.

Pre-Flight Habits That Make You a Better Helicopter Pilot

The startup sequence is more than a procedural hurdle. It is a habit-forming practice that shapes how you approach every flight. Pilots who develop solid, consistent habits during startup carry those habits into cruise flight, emergencies, and everything in between.

A few habits worth building from day one:

• Always read the checklist out loud — It keeps your mind engaged and reduces the chance of skipping items.
• Never rush the warm-up — Oil needs time to circulate and reach operating temperature before you demand full power.
• Confirm oil pressure within 30 seconds — This is one of the most critical post-start checks. Low or absent oil pressure is an immediate shutdown condition.
• Look before you engage the starter — Rotor blades and tail rotors are not visible to bystanders until it is too late. Make sure the area is clear every single time.
• Keep your eyes moving — During startup, watch the gauges, the rotor, the area outside, and your instruments. Fixating on one item can cause you to miss something important.

Fun Fact: According to many aviation instructors, the habits a pilot builds during flight training are among the hardest to change later in a career. Developing sharp, consistent startup habits from the beginning pays dividends for the entire time you fly.

Conclusion

Mastering the piston engine helicopter startup is one of the foundational skills every helicopter pilot builds. From the walk-around inspection to rotor engagement and the final run-up checks, every step in the sequence exists to protect you, your passengers, and your aircraft. Understanding the why behind each item transforms a mechanical checklist into a genuine safety habit — and that is the mark of a truly capable pilot.

The Robinson R22 and R44 are two of the most widely used training helicopters in the United States, and the startup procedures developed for these aircraft have stood the test of decades of real-world flying. Learn them well. Respect the process. And never let time pressure push you into skipping steps.

Ready to take the next step in your aviation journey? Flying411 is here to help — with practical resources, guidance, and support for pilots and aviation enthusiasts at every level.

Frequently Asked Questions

What is the first step in a piston engine helicopter startup?

The first step is a thorough pre-flight inspection of the aircraft, including the rotor blades, engine compartment, fuel, and airframe. Only after confirming the aircraft is airworthy does the pilot proceed to the cockpit and begin the pre-start checklist.

Why do piston helicopters need a clutch during startup?

Piston helicopters use a clutch to keep the rotor disengaged while the engine starts and stabilizes. This allows the engine to reach a stable idle RPM without the immediate load of spinning the heavy rotor system, which protects the engine and drive components.

What happens if you skip the magneto check during run-up?

The magneto check confirms that both ignition systems are functioning correctly. Skipping it means you might take off with a faulty magneto, which reduces the engine's redundancy. In the event of a problem with the working magneto in flight, you would have no backup ignition.

How do I handle a flooded engine on a piston helicopter?

Follow the specific flooding recovery procedure in your aircraft's Pilot's Operating Handbook. In general, this involves placing the mixture at IDLE CUTOFF, opening the throttle fully, and briefly cranking the engine to clear excess fuel from the cylinders. Never deviate from the manufacturer's procedure.

Is the startup procedure the same for all piston helicopters?

No. Every helicopter model has its own manufacturer-approved checklist and startup sequence. While the general phases are similar, the specific steps, settings, and RPM targets vary between models. Always use the POH for the specific aircraft you are flying.
